Schenker Zen 50
10 mins read

The installation of the Schenker Zen 50 on the Daydreamer : a compact watermaker which takes up very little space

The Schenker Zen Schenker Zen 50 vertical installationwatermakers are specially designed to take up little space thanks to their compact size. This allows them to be easily installed even on sailing and motor-powered boats devoid of any technical spaces reserved for this purpose.

The characteristics that differentiate the Zen watermakers from the others consist in the presence of a very compact machine body separated from the pump unit and filters, which are equally independent. As a result, the wakermaker can be installed in various and little capacious spaces.





Schenker Zen , active carbon filter and valveZen watermakers are therefore very appealing not only to new boats but also to post-sales installations where a specific installation area is not provided.

If, moreover, the boat is, like our Daydreamer, is a little dated and has very little space available, then the installation of a Schenker Zen watermaker becomes almost compulsory.

We therefore turn to the manufacturer and, among the three Zen models avaiable ( 30, 50 and 100 l/h), we choose to install and test the 50 l/h one. The Schenker Zen 50 is a machine that immediately seems perfect for our Daydreamer (a 14-meter sailboat, without any engine/technical room) to meet the daily fresh water demand, thus extending the time we spend at sea.

Schenker Zen 50 unpacking

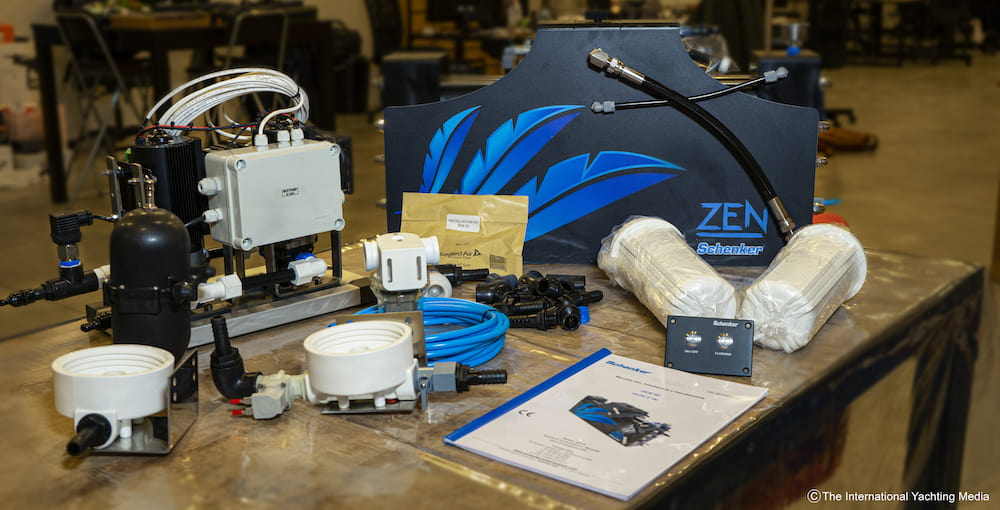

What we receive is a Schenker Zen 50, unpackingsingle box which, at first glance, suggests the compactness of the system. Inside, we find the following well-packed components:

  • The watermaker, which works by reverse osmosis and looks similar to a 24-hour case, whose maximum dimensions measure 658.8 x 384.9 x 113 cm
  • The pump, which is powered by 12 or 24 V, whose maximum dimensions measure 435 x 265 x 229 cm
  • An active carbon filter, combined with a solenoid valve and a shut-off valve for the autoclave
  • A 5 micron filter with a pressure accumulator
  • A T check valve
  • A wall filter for salt water
  • An outlet pipe for fresh water (5 m)
  • The push-button switch with On, Off and Flushing control

Once connected, these parts will make up the desalination system. In the package there are also the following accessories:

  • A circular key to unscrew the filters
  • A series of fittings for linear and elbow pipes
  • Some fixing plates
  • Fixing screws

Instead, what we need to get for the installation of the Schenker Zen 50 are the high and low pressure pipes that will be used to connect the various parts to each other and to the seacocks.

Schenker Zen 50 Installation

Schenker Zen 50 mountingAs mentioned above, the choice of the place where to install a watermaker on our Daydreamer is problematic. After discarding the stern lockers, the only free spaces are the compartments placed under the forward master bed, although none of these would have a normal watermaker with machine, filters and pumps in one block.

The Schenker Zen is therefore the only option possible and, after some careful measurements and evaluations, we choose to install it, dividing the components between the different lockers available in the fore section of our boat.

The compartments available are three and each of them can comfortably accommodate some of the parts in total comfort, so that they are easy to reach not only during installation but also for any maintenance interventions.

Another important advantage is given by the proximity to the seacocks, the fresh water tank and side drains, that is the three external components to which the watermaker must be connected. We will therefore not have to install any pipes throughout the hull.

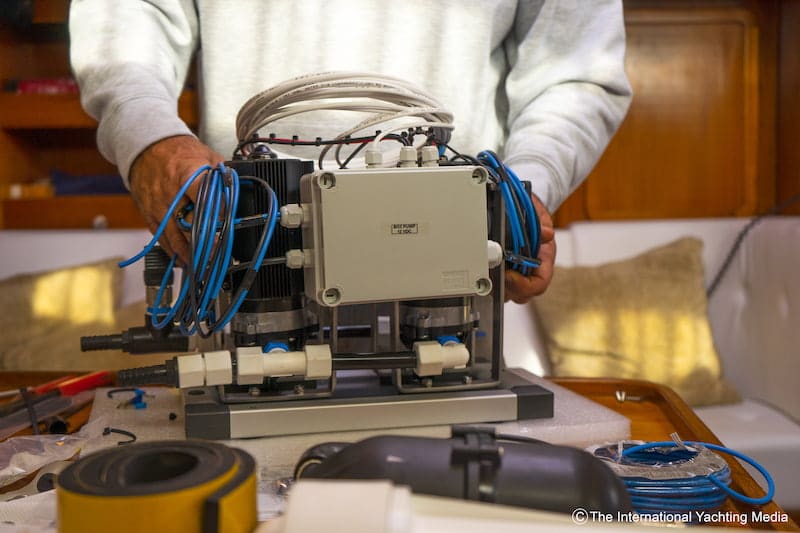

Schenker Zen 50, step 1Schenker Zen 50, step 2















The video below shows all the installation details which we can sumamrize as follows: both the salt water filter, which draws from a seacock, and the activated carbon filter that draws from the on-board fresh water circuit must be connected to the non-return T-valve. The outlet pipe of the latter is connected to the pump unit which, according to the need, receives fresh or salt water. The pump, which has the task of taking salt water and putting it under pressure, is connected to the 5 micron filter and to the accumulator through a high pressure tube.

Schenker Zen 50, final result
Final result after installation

These last parts must be connected to the reverse osmosis machine which discharges the desalinated water into the tank, while the salty waste one ends up outside the boat by means of a tube which must be connected to a side outlet.

If both the positisiong and anchoring of the parts are carefully calculated, installation is easy and the body of the watermaker can be positioned both vertically and horizontally. We only have to drill some holes to pass the pipes that connect the parts and “pull” a 12 V power source with a sufficiently wide cable, near the pump. It is however a job that we advise you to have performed by a professional; in our case, the installer is Ugo Soldi of Continetal Marine.

The total time we spend on installing the Schenker Zen 50, without considering the positioning study, is just one day of work.

The first test of the Schenker Zen 50

Schenker Zen 50, on off controlWe achieve a first excellent result during the fist power on procedure, the one where the system fills up for the first time.

We hold down the rinse button for 5 seconds on the switchboard and, as expected, the watermaker turns on and goes into pressure. After about 4 minutes, it begins, without hesitation, to produce fresh water.

A result that will not seem true to those who have already had to deal with the watermakers that, very often, run into trouble at this stage.







On the second Schenker Zen 50, fresh water testpower on, the watermaker begins, again without hesitation, to produce fresh water at full capacity, quickly filling the small collection basin that we used for the verification, not expecting such an immediate result. The capacity of the watermaker is therefore excellent, since its first use.

The Zen 50 works without having to adjust the pressure flow, which the machine performs automatically. This is a significant advantage that will be greatly appreciated as well as the remote control functions, which allow programmed start and stop and half-power operation for energy saving.

Conclusions

Thanks to the small size of its body and the possibility to install separate filters and pump (therefore also in the smallest lockers), the Schenker 50 is suitable for equipping boats on which it was previously unthinkable to have fresh water and where, now, the production of no less than 50 l/ h becomes possible.

Schenker Zen 50, DaydreamerOther important advantages are the ease of installation, which can be carried out in water, that of use and the energy impact that translates into an average consumption of 250 W, making it possible to power the machine exclusively with the battery pack , which is an important element for boats devoid of generator.

The price of the Schenker Zen 50 is € 4.985,00, VAT excluded. Not bad, if you consider that the device contributes to make the boat more independent, extending the cruising range and decreasing the stops in the port.

After installation, we can only express a positive opinion on this compact watermaker which immediately proved to be prompt and efficient.

Now, our test can start officially. In the next few months, indeed, we will use only use the watermaker to fill the tanks of our Daydreamer in order to quickly submit it to the stress it would have after a few seasons of use.

Over the next few months, we will keep you updated on how it works and on the results of our test.



Schenker Italia S.r.L.

fabio@schenker.it

Sales Office: +39 081 5593505

Technical Office: +39 081 5590931
