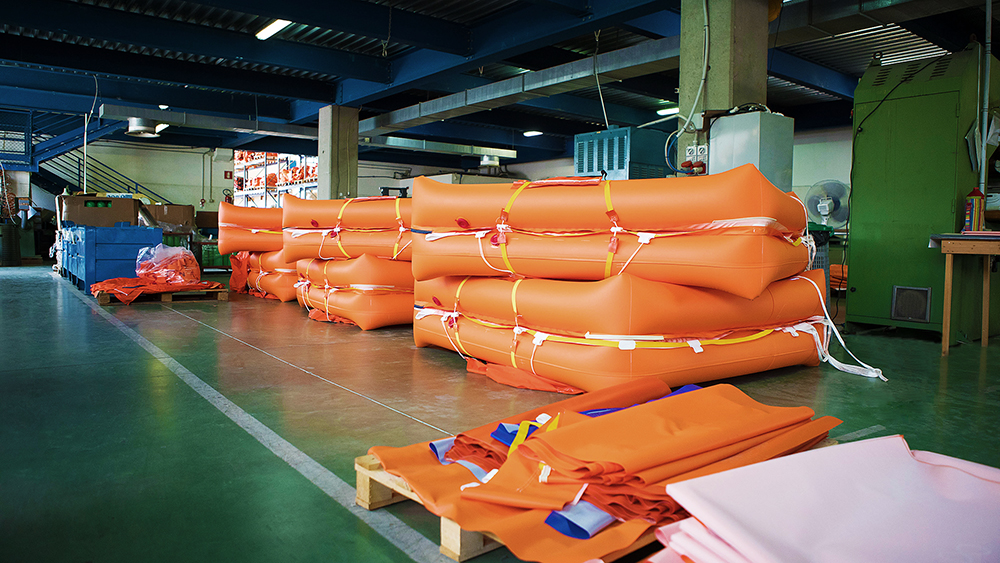

Arimar life raft
8 mins read

Last May, on the docks of the Arimar life raft, bending processMarina di Varazze, we took you inside an Arimar life raft for a 20-hour test where we analyzed the functioning of this security device and discovered the many dangers and the few pleasures of an experience like this.

Today, we want to take a step back and give you, almost as if we were in the popular tv show “How it’s made”, an overview of the building and inspection process of a life raft.

In order to explore this building reality and see what are the single steps which convert fabric rolls into perfect heavy pressurized containers ( many people are often concerned about their transportation), we’ll take you to the production facilities of Med Group, the manufacturer of the historic Arimar life rafts.

Med GroupThis way,we hope that our readers can understand the careful and rigorous work behind these items that, every day, can make the difference between our survival and the sea bottom.

The finished product we are going to follow is an Arimar Oceanus PG life raft, the same used during our test, licensed to carry 8 passengers beyond 12 miles from the coast.

Life Raft Construction

Step 1: Cutting, Welding and Test

The ground floor of the Arimar’s production facility Arimar raft constructionbased in Cervia is home to the first step of the long construction process that will take the finished life raft directly on our boats.

Within a large area entirely dedicated to the storage of materials and first processing, unrefined PVC rolls are introduced in a semiautomatic cutting machine.

Given the delicacy of the operation and the level of precision required by manufacturing, the plotter is equipped with CAD CAM (Computer Aided Design and Computer Aided Manufacturing) technology.

This technology allows to obtain 3D objects from vector drawings made thanks to special software applications; this way, the different parts which will compose the life raft will be cut with extreme precision, removing errors in their following composition.

Arimar, welding processCutting process is followed by a delicate conjunction phase where the single parts, after being cut, are joint together through high-frequency welding technology.

The process consists of supplying energy in the form of an electromagnetic field that, applied to the two plastic parts, will allow them to join together thanks to the pressure exerted by a special press.

This particular technique allows the material to melt and integrate so that, once fabrics have got cold, the welding point between the two parts is as strong as the surrounding material, if not more resistant.

Thanks to this method, the life raftAriman construction will not lose pressure from its tubes, preventing dangerous waterways from entering the survival cell.

After these first phases, the semifinished product is taken upstairs for the subsequent steps.

Here, in order to make sure that the fist two production phases have been carried out correctly, the life raft, now complete of all its structural parts, is inflated at the proper pressure and tested in its entirety.

Step 2: tanks, bending and pressing

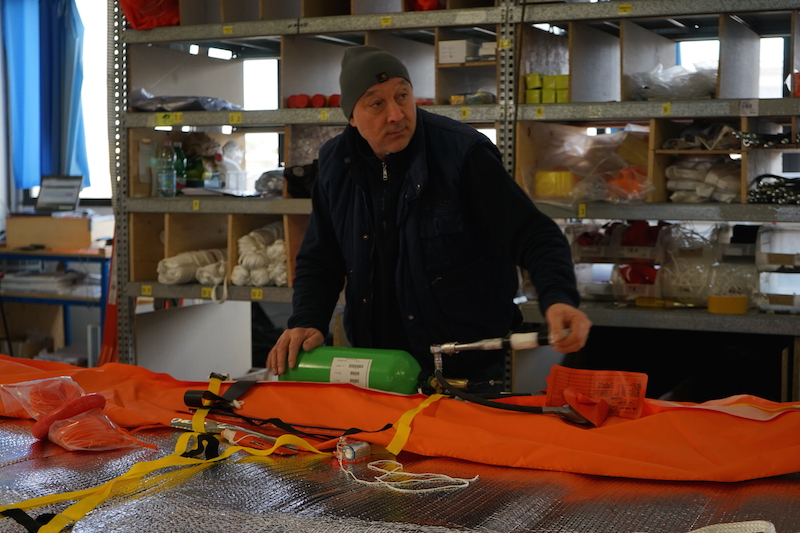

Ariman life raft, inflation tank installationUpstairs, a special machine recharges the tank that will inflate the raft in case of use.

Charge will be automatically introduced inside the tanks, according to the specific amount of air and pressure required by the life raft itself.

If the raft passes the inflation test, it is deflated and pressed in order to remove air inside. The inflation tank is connected and placed inside the raft and, then, the latter is first spread out on special work tables and finally bent, ready to be pressed and packed.

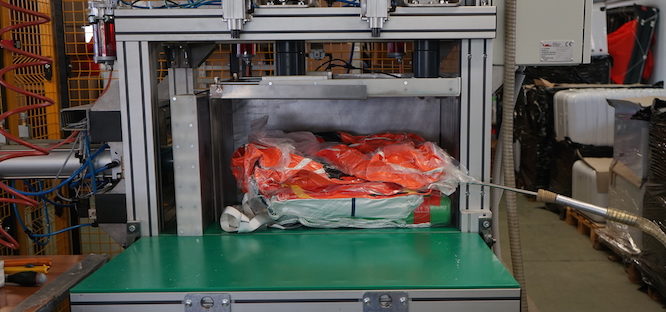

An automatic compactor presses and packs the raft, making sure that the package is of the right size and therefore able to enter the rigid shell or the protective bag.

Arimar packaging

Step 3: Equipment preparation and final packaging

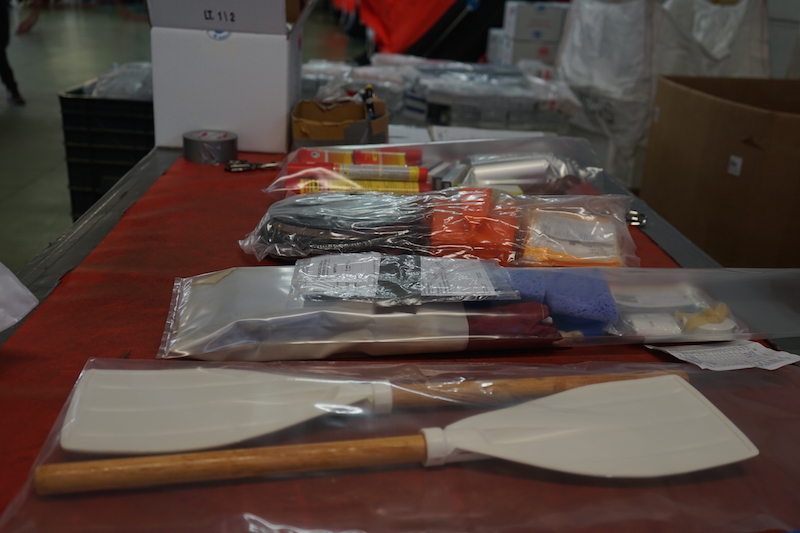

Arimar life raft, emergency equipmentEmergency equipment is broken down by category and placed in special vacuum-sealed bags in order to save further specious space.

Some devices are ready to use and put directly inside the raft; others, like in our case, are placed inside the grab bag, offered as a part of standard equipment.

The Arimar Oceanus PG life raft includes the following equipment:

Raft: floating anchor with 30-meter rope, floating ring + floating line, 2 paddles, knife, two tent supports, bailer, 2 sponges, whistle, repair kit, manual inflating pump, interior user manual, 12 sea-sickness bags, watertight torch with batteries and spare light; 3 red hand flares; parachute rocket, helipgrah, 0.5 liters of water rations per person and 6 sea-sickness tablets per person.

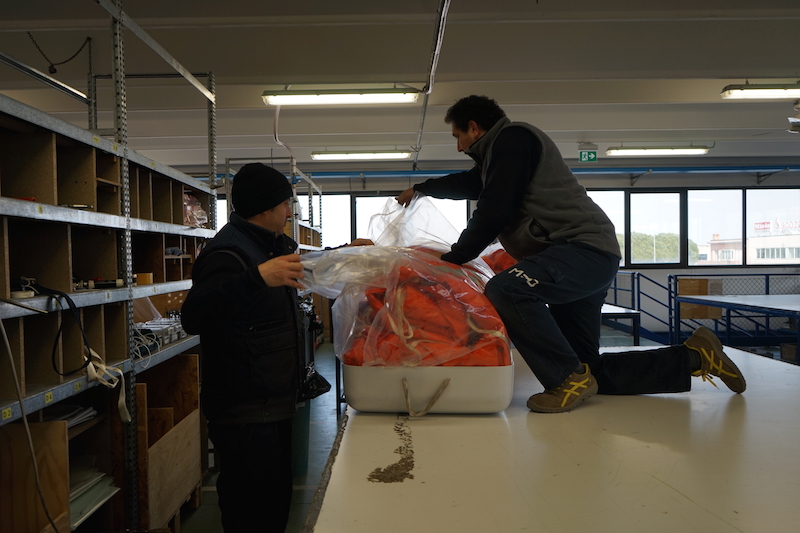

Grab bag: 8 sea-sickness bags, Ariman life raft, bendingparachute rocket, 2 floating smoke flares, 1 water ration of water per person ( 1 liter), food rations ( 10000 kj), first aid kit, 2 thermal blankets and 1 fishing kit.

Once packed, the raft is put inside its container, paying special attention to the trigger wire that is passed through a hole that opens to the outside so that opening mechanism and the subsequent raft inflation can be carried out with a simple pull. Finally, the product is sealed and ready for delivery.

Raft Inspection

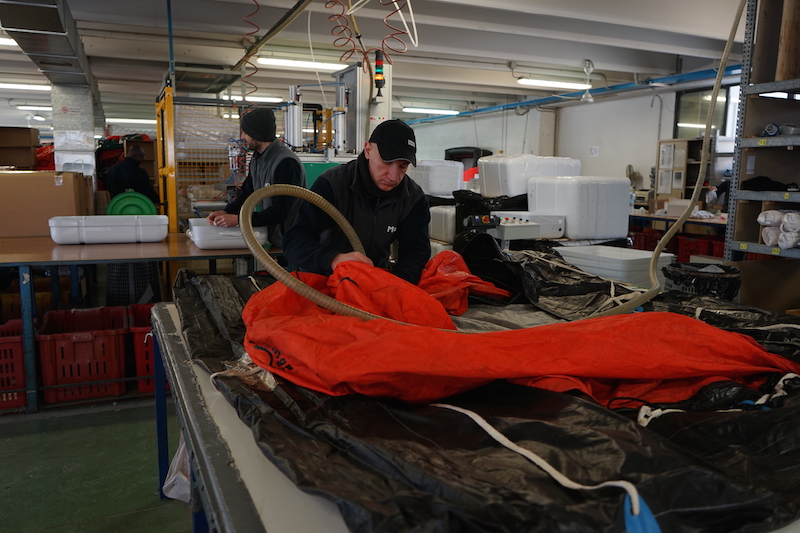

Arimar life raft, bending and pressuring processAccording to the current Italian rules, inspections should be carried out at fixed time intervals. In the case of a raft licensed for  navigation beyond 12 miles, like that one we have just “built” together, inspection should be carried out every 2 years, alternating ordinary with extraordinary inspection; rafts approved for navigation within 12 miles, instead, should be inspected within 3 years after their purchase and, then, every 2 years, always alternating ordinary and extraordinary inspections.

The question is: what does inspection consist of?

First of all, it is important to say that periodic inspection must be carried out by the manufacturer. So, in our case, rafts should be sent to the Cervia-based establishments of Med Group and, more precisely, to the Arimar productive department.

Let’s find out together the different steps of extraordinary inspection.

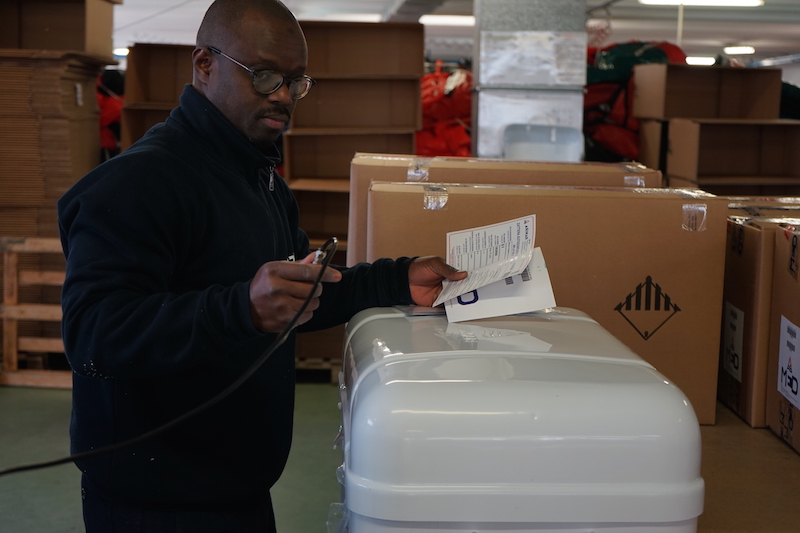

As you can imagine, the first (and the most important) Arimar life raft ready for deliverytest to carry out concerns the solidity of both structure and tubes. The raft is therefore opened and inflated in order to verify its resistance to pressure and identify eventual leaks. Then, the manufacturer makes sure there are no worn parts, due to extensive use or wrong storage conditions. Equipment is fully inspected and, when necessary, water and food rations or flares are replaced. The inflation tank is always submitted to hydraulic tests and replaced,when necessary.

Finally, the raft is bent again and packed, following the same procedures used for new rafts. Once it is given back to its owner, the life raft will be perfectly efficient again.
